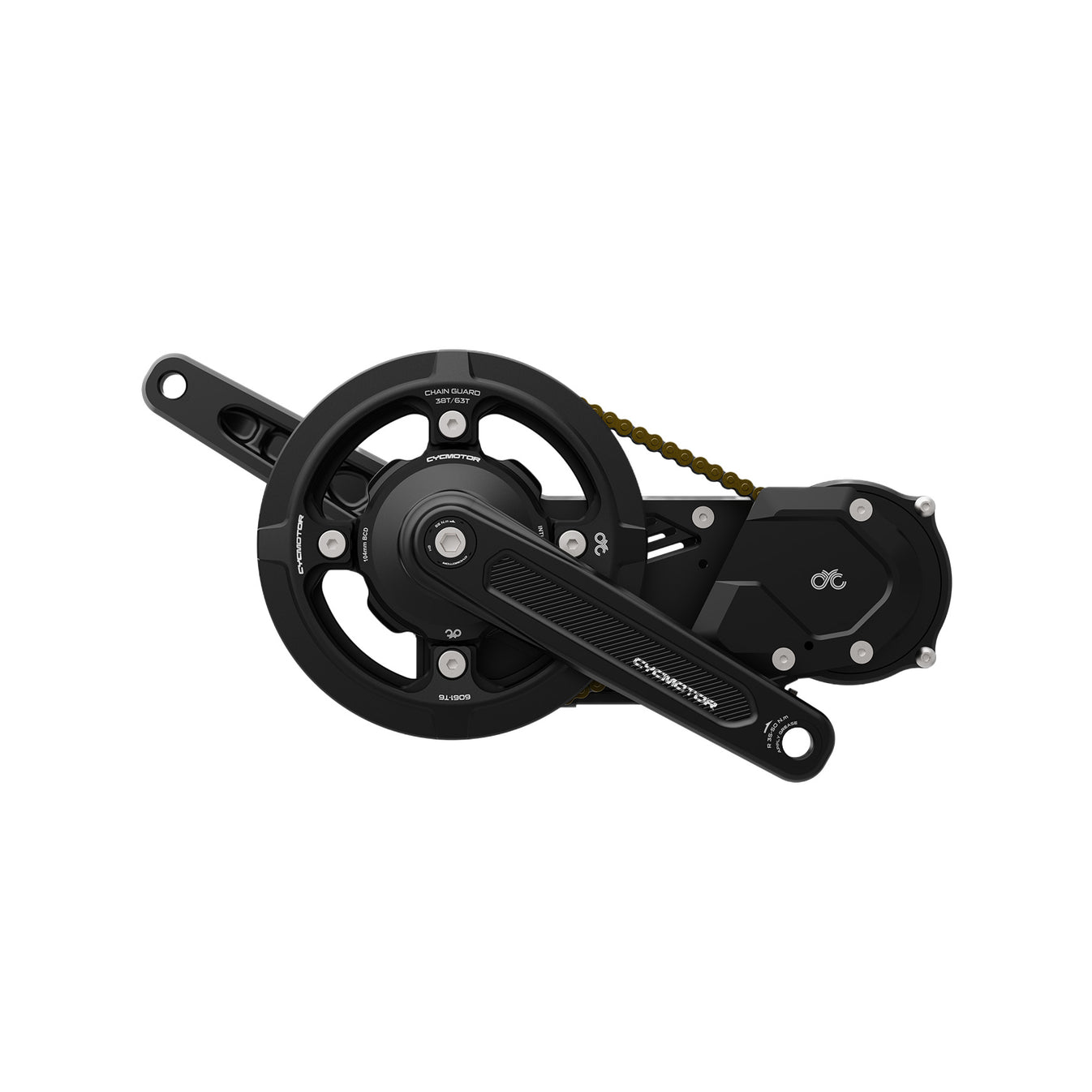

X1 Pro 4
The X1 Pro 4 is a high-powered mid-drive electric bike conversion kit made for extreme power, off-road, and utility use. Rated at 5000W (6000W peak) & 280N.m.
The package includes everything you need to convert your bike:
- Motor-reduction assembly
- 219H chainring-reduction assembly
- Bicycle chainring with chainring cover
- 219H golden KMC chain
- ISIS splined bottom bracket & spindle
- 165mm/ 170mm crank arm set
- Gen 4 torque sensor
- X12 controller
- Built-in bashguard
- Waterproof wire harness 1T2 wiring harness will be provided by default 1T4 wiring harness will be provided if the brake sensor option is selected Alternatively, request via email for 1T4 wiring harness
- Motor hanger
- 3, 5, & 7mm spacers for BSA threaded 68/73/83mm version / 2x 2mm spacers for BB92 version
- SW102 / DS103
- Thumb throttle/ Half-twist throttle/ Full twist throttle
- Magnetic speed sensor
- Magnetic brake sensors (optional)
- User manual (ecopy)
Battery compatibility:
- 36V to 72V (nominal)
Orders are shipped under Hong Kong Air mail or SpeedPost, depending on the shipping address.
Total delivery time (including handling & shipping) is 5-7 weeks after confirmed order. Tax not included, except for deliveries to the US. Payment and shipping to and from Russia, Ukraine, Cuba, Iran, Sudan, Syria, North Korea, Myanmar, Yemen, and the Crimean Peninsula are not accepted at this time.
Shipping to Israel: due to the customs policy, it is not recommended to ship the motor to Israel (there is a high chance of the kit being returned). If you still wish to purchase the motor (including the kit and parts), do not place the order via our website and contact us directly here.
This product has a 2-year warranty. Man-made failure excluded. Kindly refer to our Returns & Refunds policy for detailed information. Warranty starts on the day that your product/s are delivered. Warranty registration card included in package.
Using this product with a system not supplied by CYC MOTOR LTD will not be supported or warranted.
