Heavy-Duty Drivetrain

Heavy-Duty Drivetrain

$0.00

System Compatibility: All CYC mid-drive motor systems

Transform your e-bike with the CYC Heavy-Duty Drivetrain, engineered for exceptional performance and durability. Featuring a robust 5-speed cassette made from high-quality Chromoly steel and Aluminium 7075, it ensures smooth gear transitions and optimal efficiency. Coupled with the reliable AlexRims hub and Microshift components, this drivetrain is built to handle any terrain. It's all for the torque!

Inclusions:

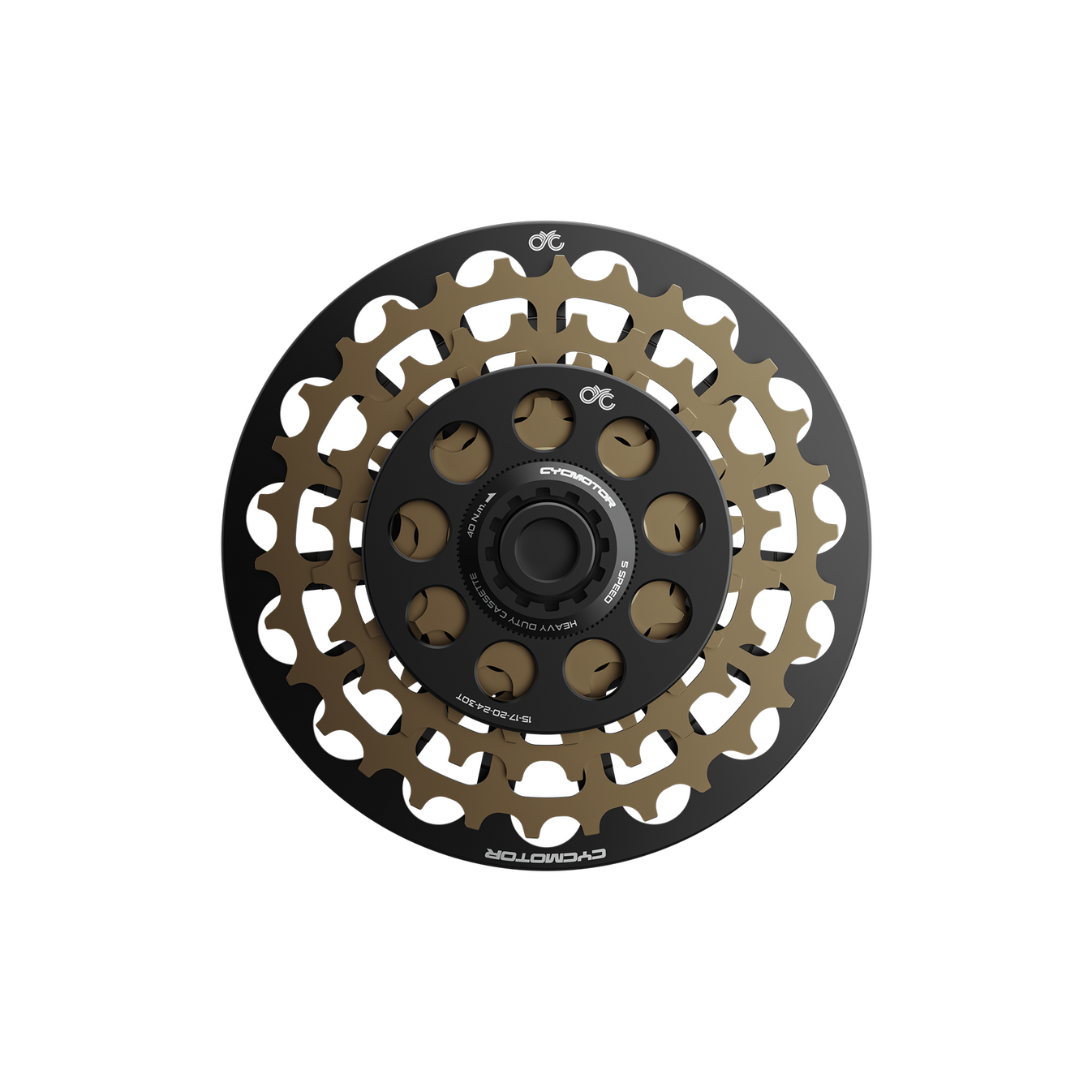

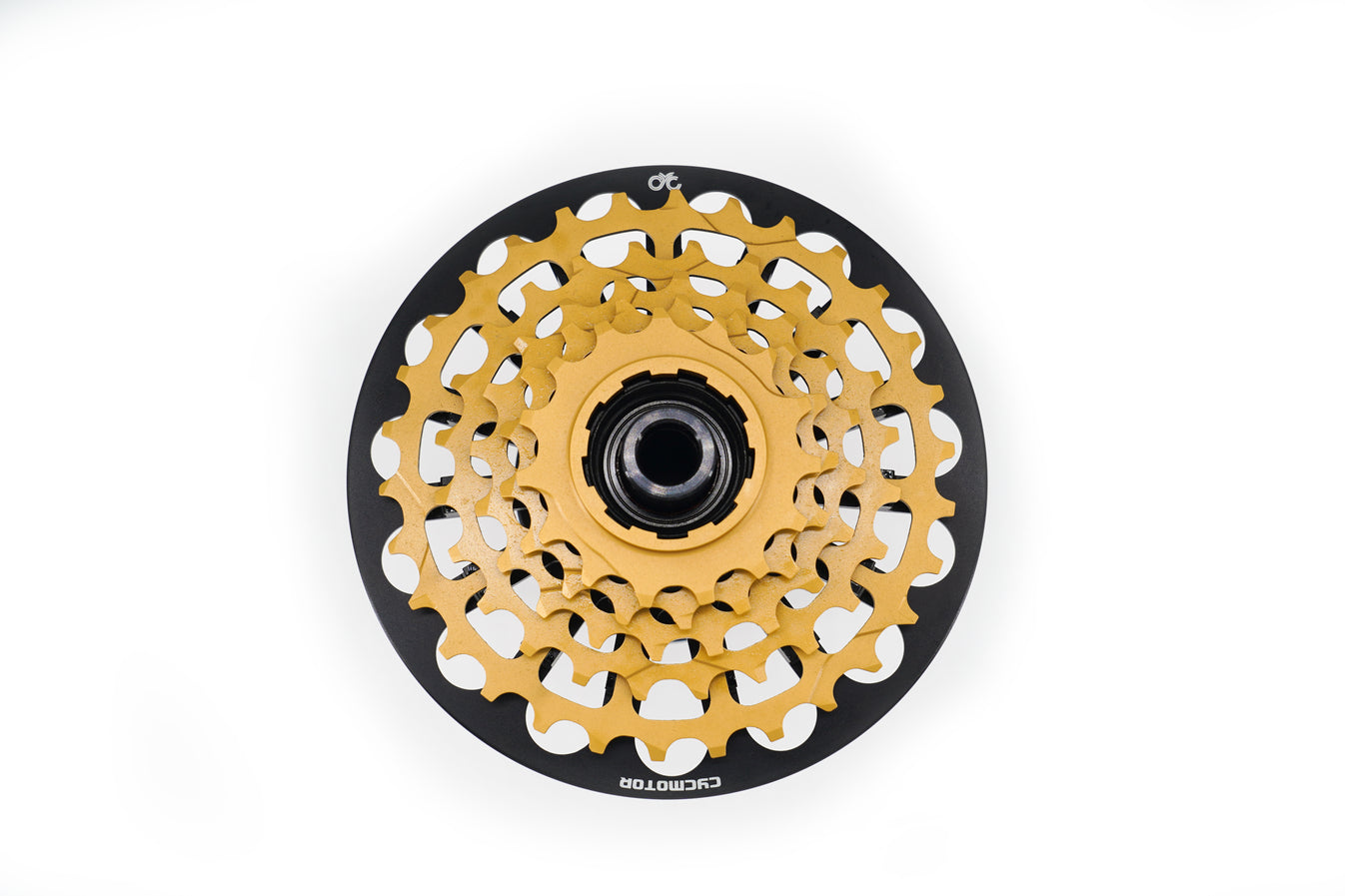

  • Heavy-Duty 5-Speed Cassette
  • e-Bike Rear Hub
  • Microshift Advent Shifter and Rear Derailleur
  • KMC e9 Turbo EPT Chain

Specifications:

Cassette — Heavy Duty 5-speed Cassette

  • Speed: 5-speed
  • Gearing: 15-30T; 15-17-20-24-30T
  • Material: Chromoly steel, Aluminium 7075
  • Optimum / operating chainline: 51.7mm centre (20T), 60.7mm final cog (15T), 42.7mm 1st cog (30T)

Hub — AlexRims e-Bike Rear Hub

  • Model: 5SB
  • Engagement Points: 24 (15 degrees)
  • Freehub Type: Ratchet-type, Steel Shimano HG (3SB IMPEL 24T)
  • Axle Type: Steel thru-axle / quick-release
  • Spoke Configuration: J-Bend
  • Brake Compatibility: 6-Bolt Disc
  • Spoke Count: 32H
  • Finish: Sanded Black

Shifter — Microshift Advent Trail Pro Shifter

  • Single Click
  • Side: Right
  • Clamp Material: Aluminum

Derailleur — Microshift Advent Super short cage clutch derailleur

  • Model: RD-M6195S
  • Cage Material: Steel
  • Outer Link Material: Aluminum

Chain — KMC e9 Turbo EPT chain

  • EPT (Anti-rust)
  • 1/2"x11/128"x136 Links

All pricing is listed in USD.

Shipping

Total delivery time (including handling & shipping) is 2–3 weeks after confirmed order.

Payment and shipping to and from Russia, Ukraine, Cuba, Iran, Sudan, Syria, North Korea, Myanmar, Yemen, and the Crimean Peninsula are not currently accepted.

Warranty

This product has a 6-month warranty. Man-made failure and normal wear is excluded. For detailed information, please refer to our Returns and Refunds policy. The warranty starts on the day your product is delivered.

This product is intended to be paired with CYC drive systems only. The use of this product with other brands is not encouraged and cannot be guaranteed.

Not compatible with the Bonnell 775 MX or AM bikes.
